High Capacity 100Ah 51.2V Wall Battery with Intuitive Touch Screen Control

  • 1
  • 2
  • 3

Model Number : RPES-WM4 (25.6V 200Ah)

Supply Ability : 2000 pieces per month

Capacity : 5.12kWh

Operating Temperature : -20°C To 55°C

Payment Terms : L/C,T/T

Chemistry : Lithium

size : 650*384*142 mm

Price : USD 550 one piece

Cycle Life : >6000 Cycles

MOQ : 1 piece

Delivery Time : 30 days

Packaging Details : carton box

Place of Origin : China

Certification : CE

Brand Name : 1STESS

Contact Now

High Capacity 100Ah 51.2V Wall Battery with Intuitive Touch Screen Control

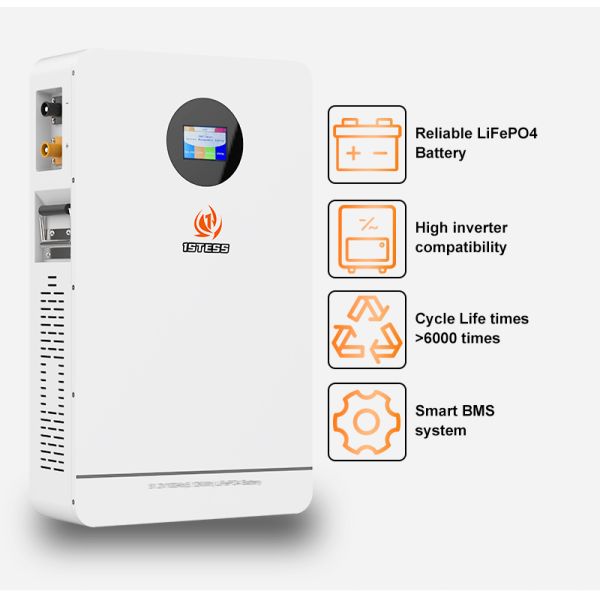

Advanced home energy storage solution featuring high-capacity lithium iron phosphate technology with intuitive touch screen monitoring and control.
Key Features
  • Safe and stable Lithium Iron Phosphate (LiFePO₄) battery chemistry
  • 51.2V rated voltage with 100Ah capacity, delivering 5.12kWh of energy
  • Wide output voltage range from 43.2V to 58.4V
  • Maximum charging and discharging current up to 100A
  • Stable operation across wide temperature range (-20℃ to 60℃)
  • Over 6,000 cycles at 0.2C, 25℃, 80% depth of discharge
  • Design life exceeding 10 years

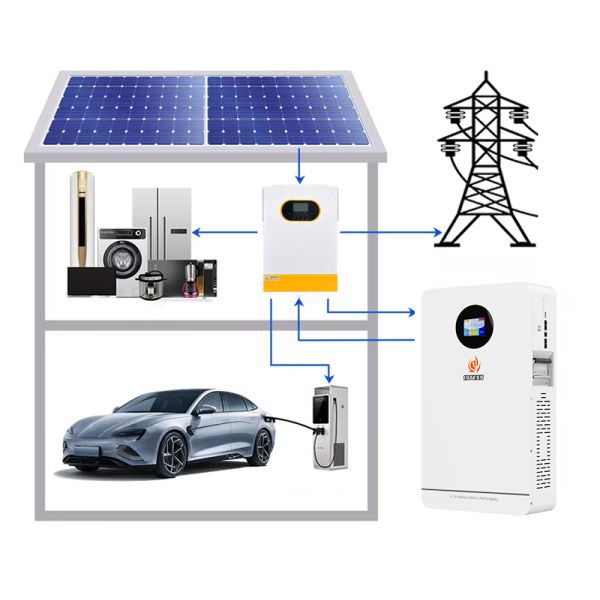

  • Solar energy storage for peak shaving and load shifting
  • Reliable backup power during grid outages
  • Touch screen for real-time battery status monitoring
  • Compatible with various home appliances and devices
Technical Specifications
Model RPES-WM4 (51.2V 100Ah)
Rated Voltage 51.2V
Rated Capacity 100Ah
Rated Energy 5.12kWh
Output Voltage Range 43.2V~58.4V
Charging Voltage 57.6~58.4V
Cut-off Voltage 43.2V
Max. Charging Current 100A
Recommended Charging Current 50A
Max. Discharging Current 100A
Efficiency >98%
Dimension L*W*H (mm) 650*384*142
Weight (kg) 48
Humidity 5%~95% Relative humidity
Charging Temperature 0℃~55℃
Discharging Temperature -20℃~60℃
Storage Temperature -10℃~30℃
Cycle Life >6000 times (0.2C,@25℃,80%DOD)
Design Life >10 years
Operating Mode Touch Screen
Product Gallery
High Capacity 100Ah 51.2V Wall Battery with Intuitive Touch Screen Control High Capacity 100Ah 51.2V Wall Battery with Intuitive Touch Screen Control High Capacity 100Ah 51.2V Wall Battery with Intuitive Touch Screen Control High Capacity 100Ah 51.2V Wall Battery with Intuitive Touch Screen Control High Capacity 100Ah 51.2V Wall Battery with Intuitive Touch Screen Control High Capacity 100Ah 51.2V Wall Battery with Intuitive Touch Screen Control High Capacity 100Ah 51.2V Wall Battery with Intuitive Touch Screen Control High Capacity 100Ah 51.2V Wall Battery with Intuitive Touch Screen Control High Capacity 100Ah 51.2V Wall Battery with Intuitive Touch Screen Control High Capacity 100Ah 51.2V Wall Battery with Intuitive Touch Screen Control High Capacity 100Ah 51.2V Wall Battery with Intuitive Touch Screen Control
Regional Applications
Kenya
Supporting off-grid solar applications, this model is ideal for Kenyan households. Its long life and easy operation empower energy independence.
Sweden
Eco-conscious Swedes will appreciate the battery's high efficiency and long design life, supporting sustainable home energy systems.
Norway
Optimized for cold climates, this unit performs reliably in Norwegian winters. Its sleek design and touch control align with local preferences for smart home technology.
